PIR Motion Sensor with 6ft of wire
PIR Motion Sensor with 6ft of wire
Couldn't load pickup availability
Orders placed now ship in 10–14 business days. Board supply is on a rolling schedule: Batch 1 (50 boards) is shipped, Batch 2 (50 boards) lands the week of Sept 22 and covers current queue, and Batch 3 (50 boards) is already in production at the fab (~10-day turnaround) and will cover new October orders. Fast shipping (Priority/2nd Day) speeds up transit only, not build time. Need it by a specific date? Email me first. All Halloween sales final after Oct 31 — no returns or refunds accepted after this date.

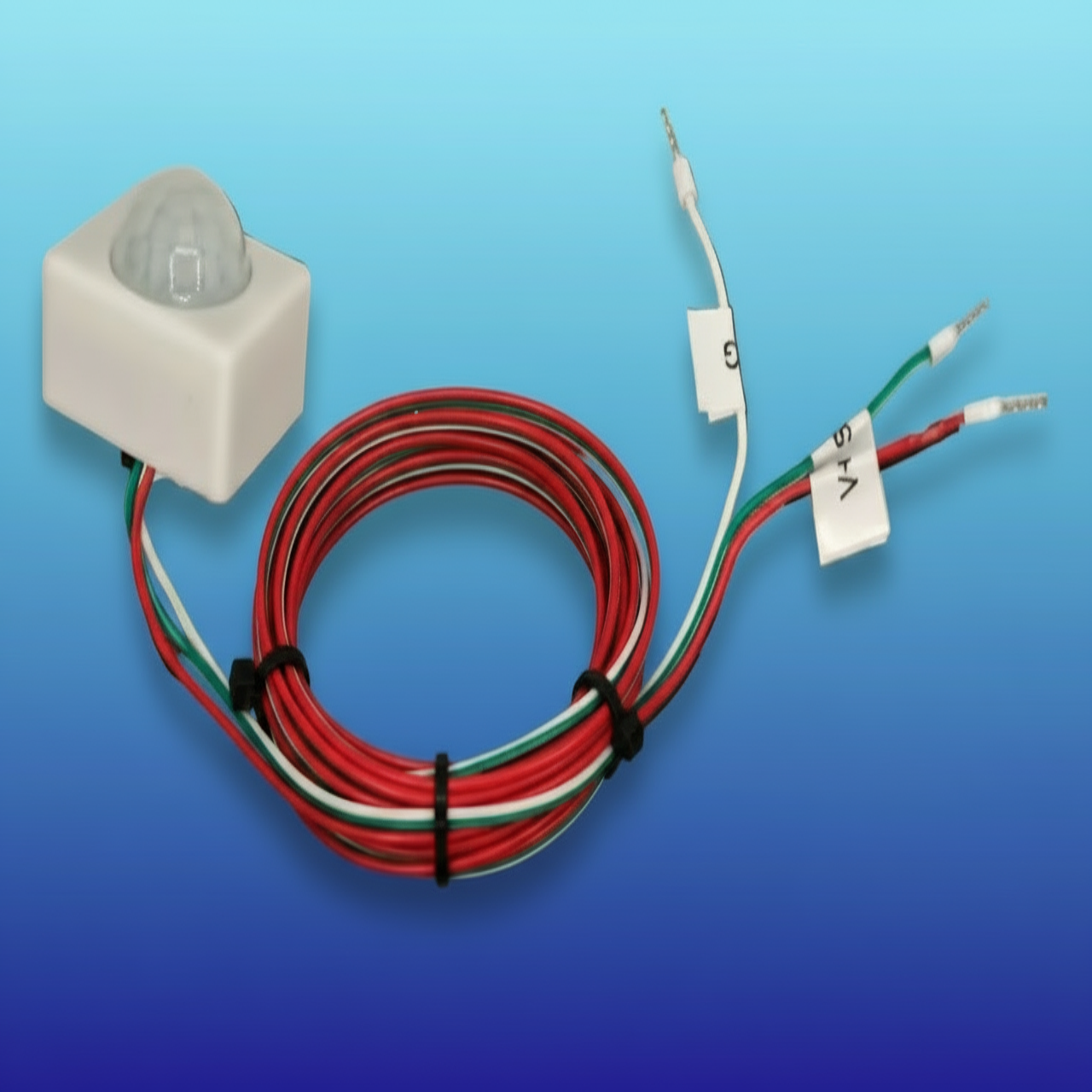

This PIR motion sensor comes pre-wired with 6 feet of cable and housed in a custom 3D-printed case — ready to plug into the Prop Activator Controller or any DIY prop project. All three wire leads are tagged (V+, G, S) for easy identification, so there's no guessing during installation.
PIR Motion Sensor — HC-SR501 Specifications
- Sensor: HC-SR501 passive infrared
- Detection Range: Up to 23 feet (7 meters)
- Detection Angle: 120°
- Operating Voltage: 4.5V–12V DC
- Trigger Modes: Single trigger (L) / Repeatable trigger (H)
- Delay Time: Adjustable 0.3 sec – 5 min (onboard potentiometer)
- Sensitivity: Adjustable (onboard potentiometer)
- Wire Length: 6 feet, pre-soldered
- Wire Labels: V+ (power), G (ground), S (signal)
- Housing: Custom 3D-printed case by DmitriyCreations
PIR Motion Sensor — Compatible With
- Prop Activator Controller — plug directly into the sensor input for walk-by prop triggering
- Arduino / Raspberry Pi projects — standard 3-pin connection works with any microcontroller
- DIY Halloween props — trigger fog machines, lights, or animatronics on motion detection (controller needed)
Jumper on "H" - corner Position, Sensitivity - Middle Position, OFF Time controll - all the way to left (CCW)
Demo Video
See this PIR motion sensor in action with the Prop Activator Controller — automatic walk-by triggering for Halloween displays.
>
